SKU 81000025
CylinderØ [mm] 25/32
Thread KK M10x1,25
B1 [mm] 5
F [mm] 26
L [mm] 73
L2 [mm] 20
SW1 [mm] 19
SW2 [mm] 12
SW3 [mm] 17
SW4 [mm] 30
Weight [g] 233

CATALOG PRODUCT PAGE

CAD FILES (click to download)

If you need a rework or a custom-made-product please contact us directly with your inquiry.

The supplied 3D models, pictures and technical drawings are made with reasonable care.
Nevertheless liability is excluded for the accuracy and correctness of this data.

Weight 0.2 kg
Dimensions 73 × 30 × 30 cm
Material

Surface

Cylinder diameter [mm]

Thread size [mm]

Total Length [mm]

Weight [g]

Inch / Metric

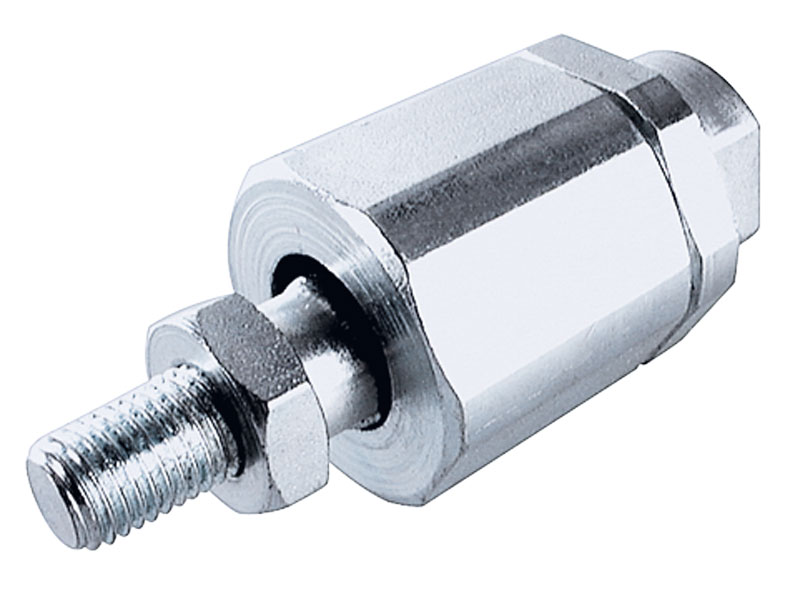

Beam coupling for cylinder diameter 25/32 mm thread M10x1,25 SKU: 81000025

Materials:
Housing: Steel, zinc plated.
Bolt: Steel, hardened.
Nut: Steel, zinc plated.

Mounting element at the piston rod.

$33.89

Ships within 1-2 weeks

Quantity Price
1 - 9 $33.89
10 - 24 $30.50
25 - 49 $28.06
50+ $26.83
