Maedler North America

SKU 67700435
Form L
l [mm] 60
d1 [mm] 8,3
d2 [mm] 8
h1 [mm] 15
h2 [mm] 8
h3 [mm] 8,5
h4 [mm] 17
l3 [mm] 26
m [mm] 36
FA 1) [N] 5000
FR 2) [N] 6000
Weight [g] 200

CATALOG PRODUCT PAGE

CAD FILES (click to download)

ADDITIONAL INFORMATION

If you need a rework or a custom-made-product please contact us directly with your inquiry.

The supplied 3D models, pictures and technical drawings are made with reasonable care.
Nevertheless liability is excluded for the accuracy and correctness of this data.

Weight 0.2 kg
Dimensions 15 × 60 × 60 cm
Material

Surface

Shape

Width [mm]

Bore diameter [mm]

Total height [mm]

Max. axial force [mm]

Weight [g]

Inch / Metric

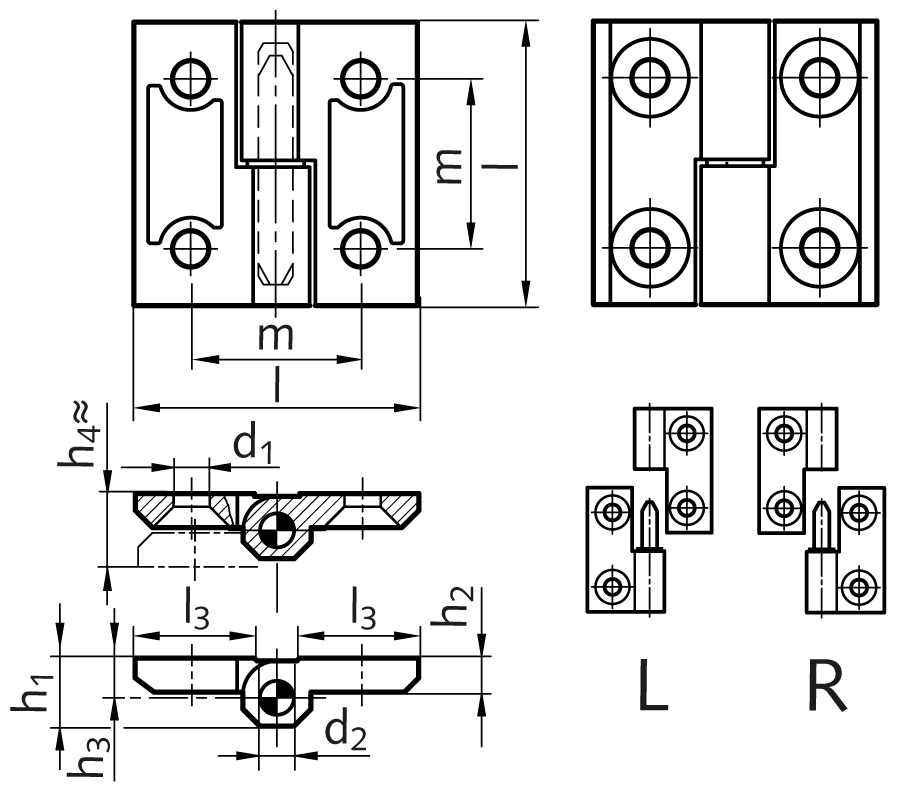

Hinge M337 stainless steel 1.4308, detachable, type L, 60x60mm SKU: 67700435

Material: Stainless steel 1. 4308, matt blasted. Pin: Stainless
steel 1. 4305.

Detachable hinges with sliding disc from plastic. Before mounting, the
pin should be lightly greased. With bores for countersunk screws DIN
7991.

Type L: for installation at the left side.

Type R: for installation at the right side.

1) Max. axial force.

2) Max. radial force at
opening angle 90°.

These are non-binding guide values without any liability.

$28.34

Availability: 4 in stock (backorders ship within 1-2 weeks)

Quantity Price
1 - 9 $28.34
10 - 24 $27.86
25 - 49 $27.39
50+ $26.92
