Maedler North America

SKU 60170200
Torque max. [Nm] 0,9
Bore +0,030 [mm] 5
L [mm] 34,5
L1* [mm] 9,2
D1 [mm] 19,2
Max. Displacement [±°] 4
Max. Displacement radial [±mm] 0,4
max. Misalignment axial [±mm] 0,2
Torsional Rigidity [Nm/rad] 145
Weight [g] 14

CATALOG PRODUCT PAGE

CAD FILES (click to download)

ADDITIONAL INFORMATION

If you need a rework or a custom-made-product please contact us directly with your inquiry.

The supplied 3D models, pictures and technical drawings are made with reasonable care.
Nevertheless liability is excluded for the accuracy and correctness of this data.

Weight 0.014 kg
Dimensions 20 × 20 × 35 cm
Material

Stainless

Coupling type

Max. speed [U/min]

with keyway

Electrically insulating

Temperature min [°C]

Temperature max [°C]

Surface

max. Torque [Nm]

Bore diameter [mm]

Total Length [mm]

Outer diameter [mm]

max. Misalignment Radial [±mm]

Max. misalignment axial [mm]

Torsional stiffness [Nm/rad]

Weight [g]

Inch / Metric

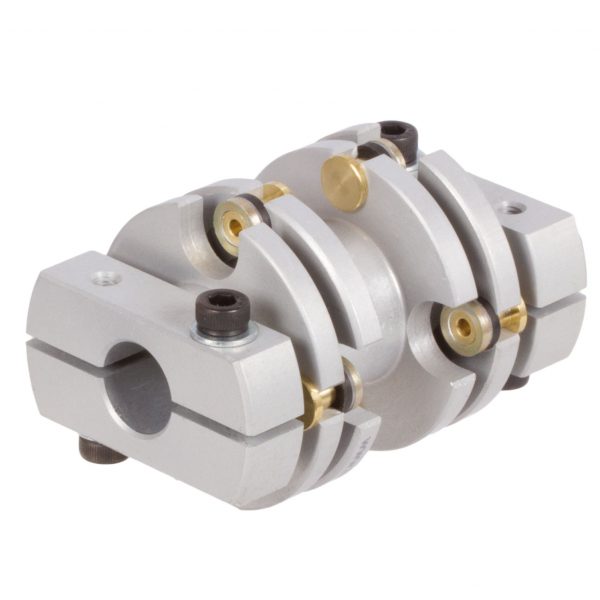

Membrane coupling MEM with clamping hub bore both sides 5mm max. torque 0.9Nm SKU: 60170200

Materials: Hubs and sleeves: Aluminium alloy 2011T3 and 2011T8 BS
4300/5 FC1, clear anodised finish. Membranes: stainless high-quality
spring steel. Screw connection: Screws: heat-treated steel, black oxide
finish. Bushes: Steel zinc-plated and chromated black. Connecting parts:
Heat-treated steel, black oxide finish. Temperature range: -40°C to
+120°C. Torsionally-stiff construction, no moving parts, all-metal
design, low moment of inertia. The functional principle offers the
highest operational readiness to be achieved with flexible couplings.
Excellent kinematic properties and high torsion-spring stiffness.
Suitable for servo drives. Tolerant flexural system and a dynamically
balanced construction for high-end positioning and servo drives.
Operating Factors: Type of Load – Operating Factor Uniform Load – 1,5
Alternating Load – 2 Shock load – 3 Reversing shock load – 4 *depth of
bore, remaining length relieved.

$68.00

Ships within 1-2 weeks

Quantity Price
1 - 9 $68.00
10 - 24 $60.26
25 - 49 $55.83
50+ $52.48
