SKU 83000500
Connector G1/4
Weight [g] 360

CATALOG PRODUCT PAGE

CAD FILES (click to download)

ADDITIONAL INFORMATION

If you need a rework or a custom-made-product please contact us directly with your inquiry.

The supplied 3D models, pictures and technical drawings are made with reasonable care.
Nevertheless liability is excluded for the accuracy and correctness of this data.

Weight 0.36 kg
Dimensions 48 × 50 × 106 cm
Material

Surface

Connection

Weight [g]

Inch / Metric

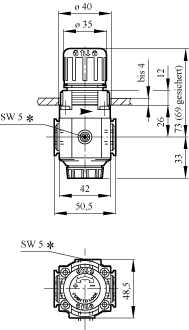

Regulator relieving, port G1/4 SKU: 83000500

Material: Housing: Zinc die-cast. End covers: Polyacetal. Valve:
Brass. O-ring seals: Synthetic elastomers. Medium: Compressed air.
Operating pressure: Max. 20 bar. Pressure range: 0. 3 to 10 bar as
standard. Relieving Operation: Relief function as standard. Max. flow:
33 l/s (connection G1/4, inlet pressure 10 bar, set pressure:6. 3 bar, Øp
= 1 bar).

$45.19

Ships within 1-2 weeks

Quantity Price
1 - 9 $45.19
10 - 24 $44.00
25 - 49 $43.11
50+ $42.37
