SKU 68551006

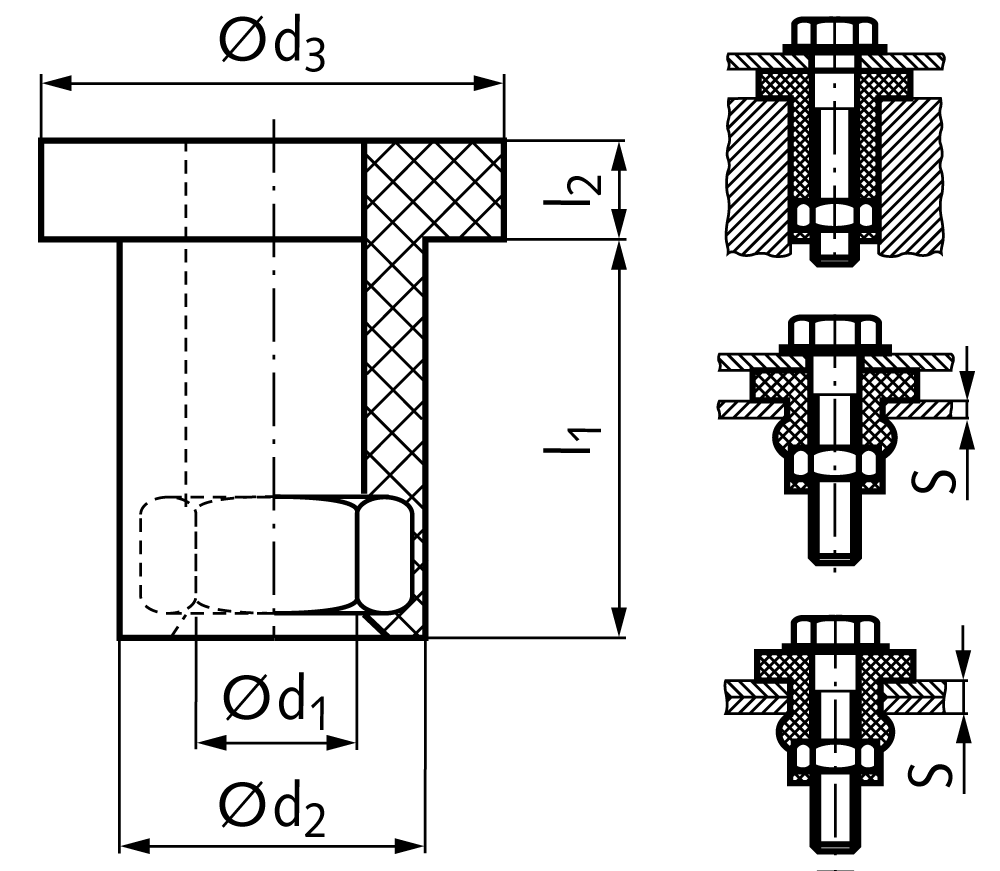

d1 [mm] M6
d2 [mm] 12,7
d3 [mm] 18
l1 [mm] 17
l2 [mm] 4,0
AdmissionBore D8 [mm] 12,7 – 13,0
S [mm] 1,5 – 5,0
Weight [mm] 5,3

CATALOG PRODUCT PAGE

CAD FILES (click to download)

If you need a rework or a custom-made-product please contact us directly with your inquiry.

The supplied 3D models, pictures and technical drawings are made with reasonable care.
Nevertheless liability is excluded for the accuracy and correctness of this data.

Weight 0.006 kg
Dimensions 21 × 18 × 18 cm
Material

Surface

Thread size [mm]

Outer diameter [mm]

Flange diameter [mm]

Mounting-in length [mm]

Thickness of flange [mm]

Needed bore of counterpart [mm]

Weight [g]

Inch / Metric

Rubber-Metal fastening element Maed-Flex material Chloroprene CR 75 +/-5°ShA d2=12,7mm thread M6 SKU: 68551006

Material: Elastomer: Chloroprene (CR), hardness 75+/-5º Shore A. Metal part (nut): Steel, zinc-plated. Standard components for elastic mounting. The grade of rubber used has perfect physical properties.

  • Quick and easy to mount.
  • Reduces noise and vibrations.
  • Versatile usage with various mounting possibilities.

Temperature range: -40°C up to +80ºC. Other sizes, Shore hardnesses or elastomer types on request.

$1.58

Availability: 100 in stock (backorders ship within 1-2 weeks)

Quantity Price
1 - 9 $1.58
10 - 24 $1.43
25 - 49 $1.33
50+ $1.20

Rubber-Metal fastening element Maed-Flex material Chloroprene CR 75 +/-5°ShA d2=12,7mm thread M6 SKU: 68551006
