SKU 64906265
Type hell verzinkt
Rail Length [mm] 650
Extension +/ 3,2 [mm] 488
A [mm] 128
B [mm] 224
C [mm] 320
D [mm] 416
E [mm] 592
F [mm] 419,1
Load Value / Pair [kg] 20
Weight / Pair [kg] 1,53

CATALOG PRODUCT PAGE

CAD FILES (click to download)

ADDITIONAL INFORMATION

ASSEMBLY INSTRUCTIONS

If you need a rework or a custom-made-product please contact us directly with your inquiry.

The supplied 3D models, pictures and technical drawings are made with reasonable care.
Nevertheless liability is excluded for the accuracy and correctness of this data.

Weight 1.53 kg
Dimensions 650 × 54 × 40 cm
Material

Typ

Extension type

Slide width [mm]

Fast disconnect

Retracted hold

Extended hold

Locking

Self closure

Optional mounting brackets

Surface

Rail Length [mm]

Travel +/- 3.2 [mm]

Load rating / pair [kg]

Weight / Pair [kg]

Inch / Metric

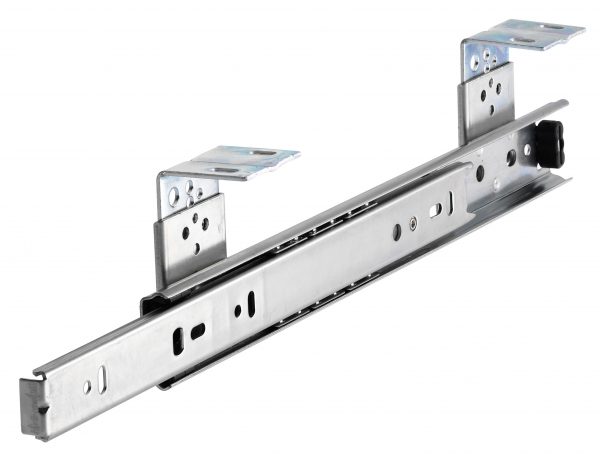

Slide set DZ 2109 slide length 650mm zinc plated SKU: 64906265

Material: Slide elements: Cold rolled steel, zinc-plated or
coated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened
steel.

Sold by pair (1 x product no. = 1 pair of slides).

Telescopic ball bearing precision slides for applications in the
industrial and electronics sector.

  • Fast disconnection.
  • Hold-in in the closed position and Hold-out in open position.
  • Height-adjustable bracket mount included.
  • Optional clip-on brackets available.
  • Version bright zinc-plated or black passivated.
  • Especially long service life, up to 50,000 cycles.
  • Temperature range: -20°C to +70°C.

Note Recommended fastening: M4 screw (included in delivery). Use
all mounting positions to achieve the max. load ratings.

$35.85

Ships within 1-2 weeks

Quantity Price
1 - 9 $35.85
10 - 24 $35.25
25 - 49 $34.66
50+ $30.89
